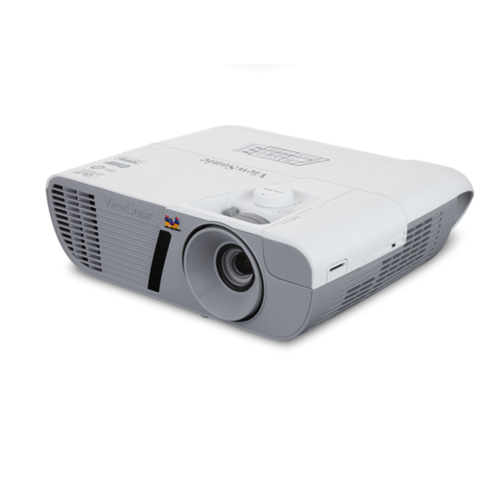

The ViewSonic LightStream® PJD7836HDL 1080p projector features 3,500 lumens, Full HD 1920x1080 native
resolution, an intuitive, user-friendly design and a sleek white chassis. Exclusive SuperColor™ technology offers a
wide color gamut for beautiful image production in nearly any environment, while SonicExpert™, ViewSonic’s
proprietary sound enhancement technology, powers a 10W speaker to deliver incredibly clear and audible sound.
PortAll™ - a neatly designed enclosed HDMI/MHL connection compartment, supports wireless HDMI dongles or
MHL connectors, while a cable management hood eliminates unsightly cable clutter. With shorter throw ratio, 1.3x
optical zoom, HV keystone, four corner adjustment, and extensive connectivity, the PJD7836HDL provides flexible
and quick set-up. The PJD7836HDL is the ideal projector for both high definition presentations and vibrant
multimedia entertainment.
Resolution
1920 x 1080
Throw Ratio
1.15~1.5:1
Throw Distance
4.2 – 49.9 ft. / 1.29 – 14.28 m
Brightness (ANSI Lumens)
3,500
TYPE
DLP
RESOLUTION TYPE
1080p
RESOLUTION
1920 x 1080
BRIGHTNESS (ANSI LUMENS)
3,500
THROW DISTANCE
4.2 – 49.9 ft. / 1.29 – 14.28 m
THROW RATIO
1.15~1.5:1
DYNAMIC CONTRAST RATIO
22000:1
ASPECT RATIO
16:9
FREQUENCY HORIZONTAL
15–100KHz
FREQUENCY VERTICAL
24–120Hz
PC RESOLUTION (MAX)
Up to 1920x1080
MAC® RESOLUTION (MAX)
Up to 1920x1080
INTERNAL SPEAKERS
10W
VOLTAGE
100~240VAC (Auto Switching), 50-60Hz (universal)
CONSUMPTION (MAX)
350W
STAND-BY
<0.5W
TEMPERATURE
32-104º F (0–40º C)
HUMIDITY (NON-CONDENSING)
10-90%
PACKAGING (MM)
410 x 225 x 450
PHYSICAL (MM)
316 x 228 x 103.7
PACKAGING (IN.)
16.14 x 8.86 x 17.72
PHYSICAL (IN.)
12.44 x 8.98 x 4.08
